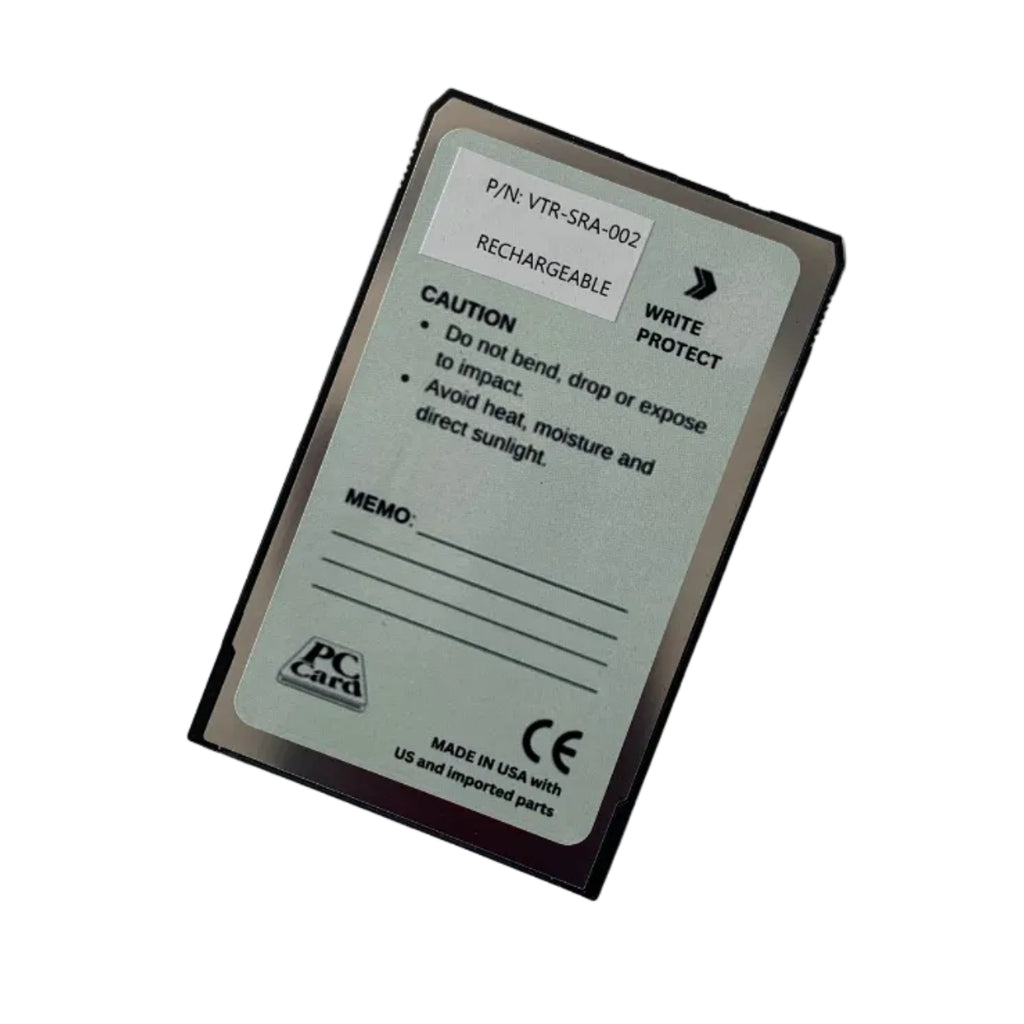

  • VTR-SRA-002 2MB SRAM PCMCIA PC card with label and text . Vertical
  • SRAM PCMCIA PC card with Vikant Corporation branding on a white background
  • VTR-SRA-002 2MB SRAM PCMCIA PC card with label and text . Vertical
2MB PCMCIA SRAM CARD - Vikant - Rechargeable Battery

2MB PCMCIA SRAM CARD - Vikant - Rechargeable Battery

$385.00 USD $465.00 USD
Memory Size
In stock
  • Amazon
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • PayPal
  • Shop Pay
  • Visa

Vikant PCMCIA SRAM CARD with rechargeable battery offer a high performance nonvolatile storage solution for code and data storage, disk caching, and various mobile embedded applications.
Specifications

This Vikant PCMCIA SRAM CARD with rechargeable battery offers a high performance nonvolatile storage solution for code and data storage, disk caching, and various mobile embedded solutions. Packaged in a PCMCIA Type I housing and PCMCIA 2.1 compliant, the cards offer densities from 512 Kilobytes to 2 Megabytes. Operating at 5V, this proven SRAM technology is backed up by a lithium battery that assures long life data retention, even when system power is removed. These cards feature a fully buffered interface to ensure excellent signal integrity. Control signals are also isolated from the Host socket and forced to an inactive state when the card is removed from the socket. In addition, data may be handled in either 8 bit or 16 bit bus modes.

Features:

  • PCMCIA 2.1 compliant
  • Single 5.0 Volt Power Supply
  • Standard SRAM Read/Write Timing
  • Fast Access Time: 150nS
  • x8/x16 data access
  • TTL compatible inputs and outputs
  • Buffered I/O Address and Data lines
  • Hardware Write Protect Switch
  • Optional Features
  • 8 Kilobyte EEPROM attribute memory containing CIS
Compatible with...

Advantest
SRAM Memory card. CSCJ-002M-SM-461

Spectrum Analyzers: R3463, R3465, U3641, U3641N, U3661, U4342, U4941, etc.

HP/Agilent

8920A, 8920B Communications Test Sets, E6380A (HP 8935) CDMA Base Station Test Set

Ag Leader SRAM Memory card

Yield Monitoring Systems / Yield Monitors 2000, 3000

Intermec

Janus 2010, 2020, 2050 Handheld Computers (Portable Data Collector)

Alesis SRAM card

Synthesizers (Keyboards): Andromeda A6, QuadraSynth Plus, S4, S4 Plus and QS Series; Drum Module: DM Pro

Korg

Synthesizer/Keyboard: Wavestation SR; 01/W or 01/Wfd Music Workstation

Amstrad SRAM Memory card

NC100 Notepad, NC200 Notebook

Laser Atlanta

Rangefinder, Mapper, Laser System

Apple PCMCIA SRAM Memory card

E-mate 300, Newton 100, 120, 130, MessagePad

Leica Geosystems

Survey Instruments:  Geosystem T1800/ TC1800/ TCA1800/ TCR & TCRA 1800
series, Total Stations TPS1100 series: TC1100/ TCA1100/ TCR 1100/ TCRA 1100
series (1101, 1102, 1103, & 1105), etc.

Anritsu SRAM Memory card

MS2702A Spectrum Analyzer

Micro-Trak SRAM Memory card

Yield Monitoring Systems / Yield Monitors

PE Applied Biosystems

GeneAmp PCR System 9700

Methods Storage Card

Midas

XL4 Audio Mixing Consoles / Analog Mixer

BSS Smart PCMCIA SRAM Memory card

FDS-388 Omnidrive Sound Management System

Motorola

PDA: Envoy 150, Marco

Nikon-Trimble

DTM-700 series (DTM-720, DTM-730, DTM-750) Total Station Survey Equipment, DTM-801 Series Field Stations

Case IH

Advanced Farming Systems (AFS) Yield Monitors

Roland

Audio Recorder AR-3000

Chroma

Video Generator 2329

Satloc

Yield Monitoring Systems / Yield Monitors

Clavia

Nord Lead Synthesizers (Keyboards)

Sharp

Mobilon HC-4000, 4100, 4500, PDA 3100, Zaurus ZR5000, 5700, 5800

Compaq

Hs-D40, J40, J50, Z50

Sumitomo

SH100A 100 ton Injection Molding Machines

DataTaker

DT600, DT605 Data Loggers

TC Electronic

M2000 Studio Effects Processor (up to 2MB), M3000 Studio Reverb Processor (up to 2MB), Reverb 4000 (up to 2MB), Reverb 6000 (up to 2MB)

Dipstick

2000 Floor Profiler

Teklynx

PrintPad 2000

Dranetz

Power Platform PP4300

Telxon

PTC 1140

Emerson

Machinery Health Analyzer CSI 2120, RS3 MPC5

Topcon

Data Collectors: FS & GTS series

Emulator

Ultra Proteus Synthesizer (keyboards)

Toyo

Injection Molding Machines

Ensoniq

KT, MR series Synthesizers (keyboards)

Trimble

GPS Plotter NT200D

Entek

IRD DataPac 1250 (DP1250) & DataPac 1250 (DP1500) Data Collectors (Vibration Analyzers).

Two Technologies

PCL-50 Handheld Computer

Fluke

Hydra 2635A Data Acquisition Unit

Uson

Leak,
Flow and Function Test System 1100

GE Fanuc

Computer Numeric Controls (CNC) series 15-B, 16-B, 16-C, 16i-A, 18-B, 18-C, 18i-A, 20-A, 21-B, 21i-A; PowerMate H (PM-H), PM-1, Motion Mate MCS700, etc.

Van Dorn Demag

Demag xxxx ton – Pathfinder 5000

HP

95LX/100LX/200LX, 1000CX, OmniGo 100/ 120/ 700LX PDAs & Palmtops

Videx

OmniWand Data Collection Terminal

This list above is not comprehensive and should be used for reference only.
Replacement for...

  • Panasonic256KB: BN-256HSR512KB: BN-512HSR1MB: BN-01MHSRC2MB: BN-02MHSRC, BN-02HSRC4MB: BN-04MHSRC8MB: BN-08MHSRC
  • Pretec (C-One Technology)256KB: S65256-08 (8-bit), SA5256-L-I-08512KB: S65512-08, SN5512-081MB: S65001, SA50012MB: S65002, SA50024MB: S65004, SA5004
  • MagicRAM1MB: SR1MBP1002MB: SR2MBP1004MB: SR4MBP1006MB: SR6MBP100
  • Mitsubishi (Melcard)1MB: MF31M1-LCDAT012MB: MF32M1-LCDAT014MB: MF34M1-LCDAT01Various: MF3513-LCDAT
  • Centennial / Smart Modular256KB: SR256-15-11191 (Smart PG30007)512KB: SR512-15-11191 (Smart PG31004)1MB: SR01M-15-11194 (Smart PG32004)2MB: SR02M-15-11194 (Smart PG33004)
  • EpsonModels: NB70-004268, NB70-004269, NB70-004270
  • IBM0.5MB: 0.5 MB SRAM Card2MB: 0933155

This list above is not comprehensive and should be used for reference only.
